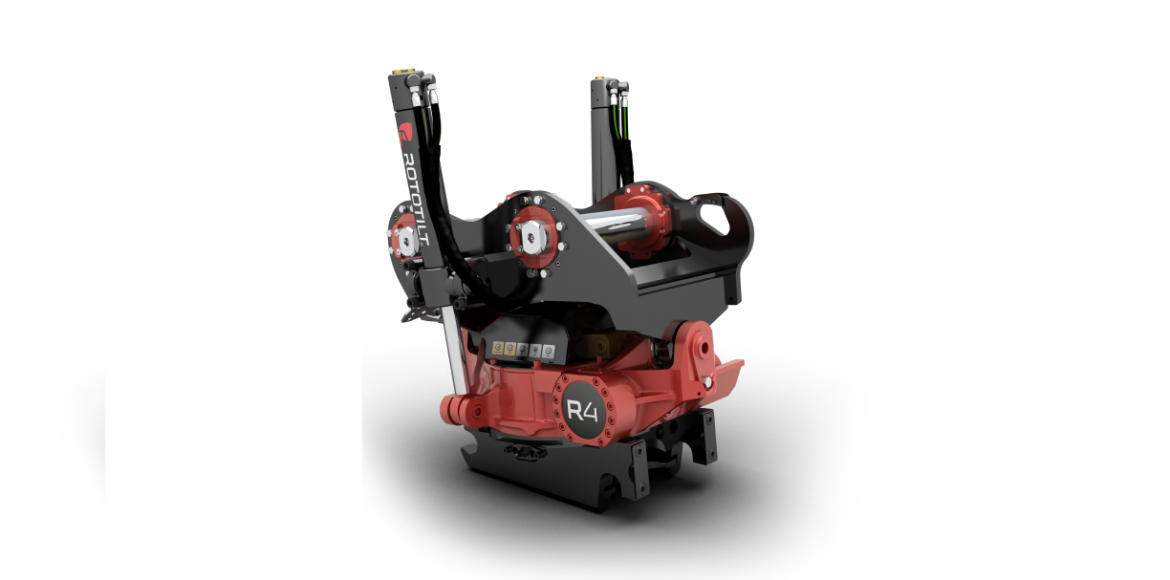

R4 10-16 metric tons

The R4 is the advanced tiltrotator for excavators between 10-16 metric tons, built to handle the most demanding of jobs. The updated model has a new rotation sensor in the end section that enables more accurate positioning.

Several benefits

The updated R4 model also has all of Rototilt's other unique benefits:

An oil-filled rotor housing cast in a single piece for maximum lubrication and minimal wear, which means very long service life.
Rototilt's control system (ICS) boosts your tiltrotator with smart functions and outstanding user-friendliness, enabling both productivity-enhancing automation (RPS) and market-leading safety (SecureLock™) in one and the same system.
Simpler maintenance and longer service life thanks to integrated carrier plates, improved central lubrication (ILS) and a new type of hydraulic coupling.

Right cast goods at the right place ››

A cast rotor housing is both stronger and lighter than welded alternatives. The thickness of the casting is optimised according to the load on the various parts.

‹‹ Smart control systems

With Rototilt® you can choose the control system that optimises your excavator and contributes to increased performance, better handling and more options for settings. Choose between ICS, TLE and TE. Your tiltrotator works optimally even in very difficult operating conditions.

‹‹ Electric swivel

With an electric swivel (optional), you can control the valves on the tools coupled to your tiltrotator. In this way, even more advanced tools can be used.

Stability and strength ››

A very strong bolted joint holds the rotor housing and the quick coupler in a firm grip.

‹‹ Smart attachment frame

With a direct attachment frame, you get lower overall costs, lower weight and more digging power. For maximum flexibility, we have developed our own, patented multi-attachment frame.

Powerful cylinder with load holding ››

Our smallest tiltrotators have a double acting cylinder for maximum power and load holding as standard which increase safety at work site; the load remains securely in position even if the hydraulic system loses pressure due to something like a hose rupture. Hardened and well dimensioned piston rod.

Protected hydraulic motor ››

The specially designed guard for the hydraulic motor is integrated with the cast rotor housing and protects it against impact and shocks from beneath.

‹‹ Long service life

Sturdy, amply dimensioned pins, shafts and bushings make your tiltrotator from Rototilt® more robust and long-lasting than any other tiltrotator on the market.

‹‹ High performance

Rototilt's tiltrotators work with higher system pressure than other brands on the market. This provides better performance for all functions – such as for important tilt and torque manoeuvres, and more clamping force when using a grapple.
