R3 6-12 metric tons | Baltem LV

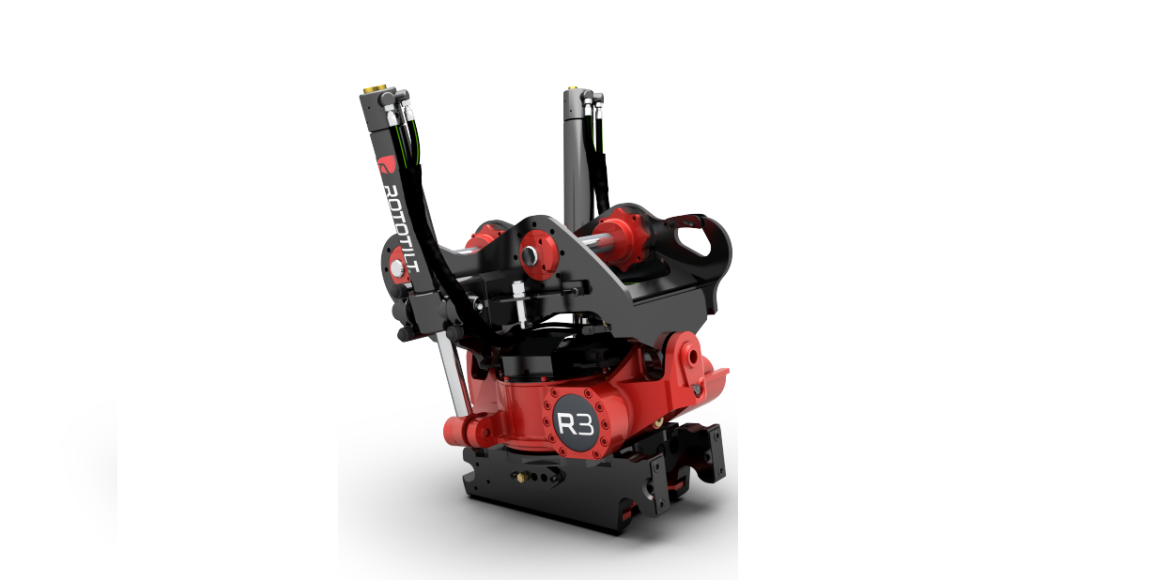

R3 6-12 metric tons

For excavators 6-12 metric tons. The tiltrotator R3 is adapted to an increasingly popular segment in the excavator market and can handle higher machine weights up to 12 metric tons.

The R3 is available with ICS - Rototilt's smart control system - the markets most flexible. Add the SecureLock™ option, which confirms that the attachment is correctly coupled, and you have one of the world’s safest tiltrotators.

Key advantages of the R3 are the smart design with integrated swivel (with the options of a High Flow Swivel and electric swivel), enhanced hydraulic connections as standard (ORFS), fully integrated central lubrication and load-holding valves on the tilt cylinders. The hydraulic system is developed to operate at up to 250 bar for maximum performance.

Extensive options when it comes to the selection of control systems and configuration
ICS – a user-friendly and reliable control system with extensive flexibility
SecureLock™ – confirms engagement and continuously monitors locked attachment status
RPS – position sensors compatible with the industry’s leading excavating systems
Efficient hydraulics and the tiltrotator’s low weight help minimise the machine’s fuel consumption

Right cast goods at the right place ››

A cast rotor housing is both stronger and lighter than welded alternatives. The thickness of the casting is optimised according to the load on the various parts.

‹‹ Smart control systems

With Rototilt® you can choose the control system that optimises your excavator and contributes to increased performance, better handling and more options for settings. Choose between ICS, TLE and TE. Your tiltrotator works optimally even in very difficult operating conditions.

‹‹ Electric swivel

With an electric swivel (optional), you can control the valves on the tools coupled to your tiltrotator. In this way, even more advanced tools can be used.

Stability and strength ››

A very strong bolted joint holds the rotor housing and the quick coupler in a firm grip.

‹‹ Smart attachment frame

With a direct attachment frame, you get lower overall costs, lower weight and more digging power. For maximum flexibility, we have developed our own, patented multi-attachment frame.

Powerful cylinder with load holding ››

Our smallest tiltrotators have a double acting cylinder for maximum power and load holding as standard which increase safety at work site; the load remains securely in position even if the hydraulic system loses pressure due to something like a hose rupture. Hardened and well dimensioned piston rod.

Protected hydraulic motor ››

The specially designed guard for the hydraulic motor is integrated with the cast rotor housing and protects it against impact and shocks from beneath.

‹‹ Long service life

Sturdy, amply dimensioned pins, shafts and bushings make your tiltrotator from Rototilt® more robust and long-lasting than any other tiltrotator on the market.

‹‹ High performance

Rototilt's tiltrotators work with higher system pressure than other brands on the market. This provides better performance for all functions – such as for important tilt and torque manoeuvres, and more clamping force when using a grapple.
