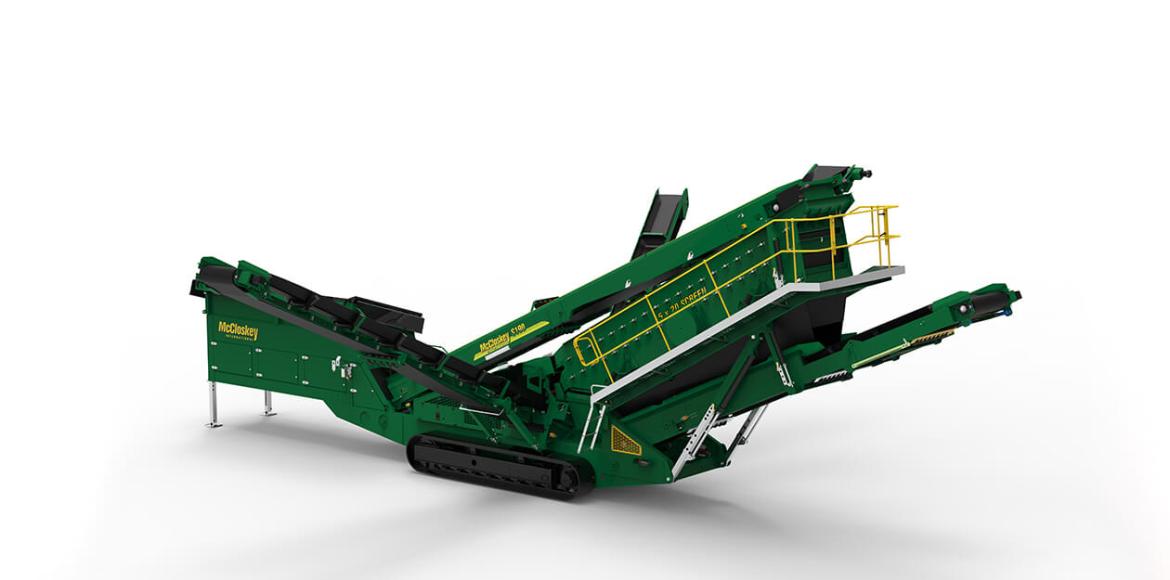

Technical data S190 2D 2-deck screen

Engine* 130 HP (98 kw)
Screenbox Top Deck 5' x 4' side tension - 5 off
Screenbox Bottom Deck 5' x 6' end tension - 3 off
Main Conveyor Belt Width 1050mm (42")
Stockpile Height Tail Conveyor 4638mm (15' - 3")
Stockpile Height Side Conveyor 5100mm (16' - 9")

Available in dual power, double or triple deck models, the S190 pushes industry performance standards and leads the competition with the most advanced and innovative 20′ x 5′ mobile vibratory screening plant in production today. The S190 High Energy Screener clearly demonstrates McCloskey’s focus on making customer focused features standard.

An adjustable screenbox angle allows adaptability to a wide range of material applications including quarrying, mining, sand and gravel, coal screening, topsoil, and woodchip. With the highest grade specifications and component parts, the S190 screener is easily the number one choice for high productivity, quality and value. The S190 Triple Deck has the highest combined true screening area across three decks and paired with its high energy screening action the McCloskey S Series models are the superior choice in material screening.

Features

  • Dual Power available
  • Most advanced 6100mm x 1524mm (20' x 5') plant in production
  • 12' hopper capacity 8.01m³ (10.48 yd³) or 15' hopper capacity 10.01m³ (13.09yd³)
  • 1200mm (48") feed conveyor
  • Remote control tipping grid
  • 10 minute set up time
