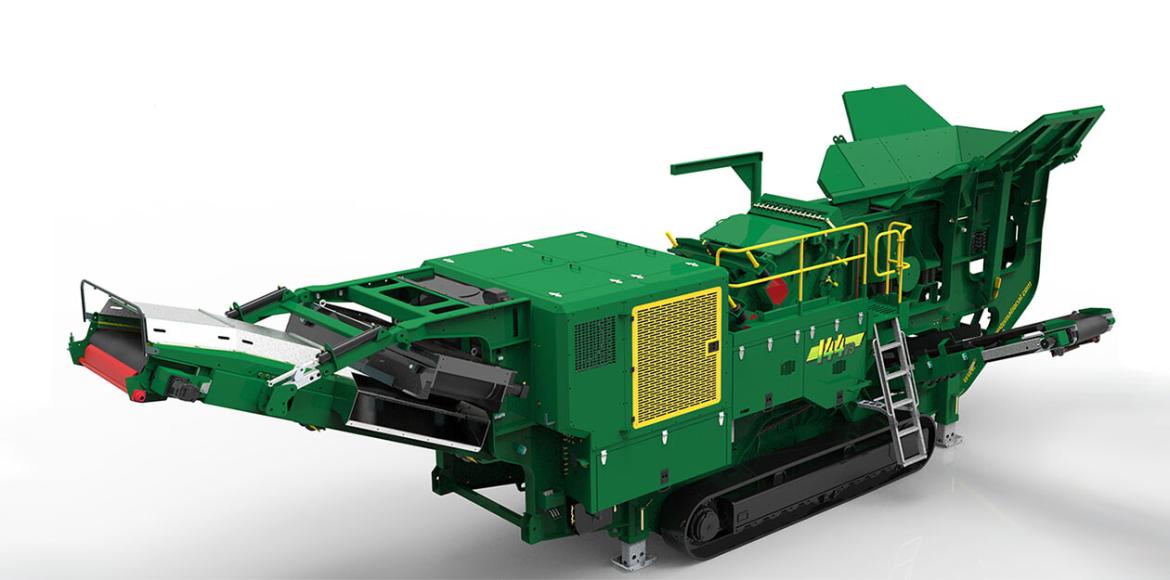

Technical data I44 Impact Crusher

Engine* 268kW (360Hp)
Transport Height 3.4m (11' 1.8")
Transport Length 15.668m (51' 4.9")
Weight - incl Magnet & Dirt Conveyor 42,000kg (92,594lbs)
Stockpile Height - Main Conveyor 4142mm (13' 7.1")
Stockpile Height - Side Conveyor 2488 mm (8' 2")

The I44v3 brings high quality and high production capacity to mobile impactor applications.

The direct drive crusher rotor, an optimized material flow path, larger pre-screen, and a more open chassis all boost production and efficiency. Efficiency is boosted particularly in the material flow path as each sectional component is wider than the last to allow an unrestricted flow without funneling or narrowing, eliminating material bridging.

The I44v3’s versatility and design make it ideal for some of the toughest applications worldwide, including asphalt recycling, concrete recycling, rock crushing, construction and demolition.

The McCloskey I44V3HDR combines the productivity of the I44v3 with the versatility of a full screening and recirculating system, allowing operators to produce a crushed and screened final product with one machine. Features include an open chassis for ease-of-access, a large double deck prescreen for efficient fines removal, a swing out radial return conveyor that can complete 90 degrees while the machine is running, and a direct drive crusher boosting power and lowering fuel costs.
